ASPIROV – Industrial Water Tank Cleaning Robot

• Ürün Markası : SUBSEA TECH
• Ürün Kategorisi : Remotely Operated Unmanned Marine & Underwater Vehicles (ROV, AUV, USV) and Diver Communication & Video Systems

• AspiROV is an ultra-portable robot especially designed for visual inspection and cleaning of fire fighting, industrial and potable water tanks. Based on the Guardian mini-ROV design, it can be operated in inspection mode (navigation in open water) or in cleaning mode thanks to its rolling skid.

  Thanks to its light weight (12kg) and its small dimensions, AspiROV can be deployed and commissionned by a single operator. The ballast system allows the operator adjusting the robot buoyancy for obstruction clearance (valves, inlet filter, etc.).

  AspiROV offers to operators and their sub-contractors a cost saving (no tank emptying) and low risk (no human intervention inside the tank) solution for both tank cleaning and inspection.

  CAMERAS VIDEO Le robot AspiROV est équipé de 2 Caméras 700 TVL à haute sensibilité. La caméra arrière est montée sur Tilt et la caméra avant sur tourelle Pan & Tilt.	MOTORISATION Équipé de roues motrices, le robot AspiROV est capable de se déplacer sur le fond d’une cuve dans toutes les directions. Il peut également naviguer en pleine eau grâce à ses propulseurs.	ASPIRATION Grâce à son module d’aspiration relié par flexibles à une pompe en surface, le robot AspiROV nettoie liner, acier ou encore béton et évacue les dépôts pompés.

  Main features

  • Max. depth : 100m

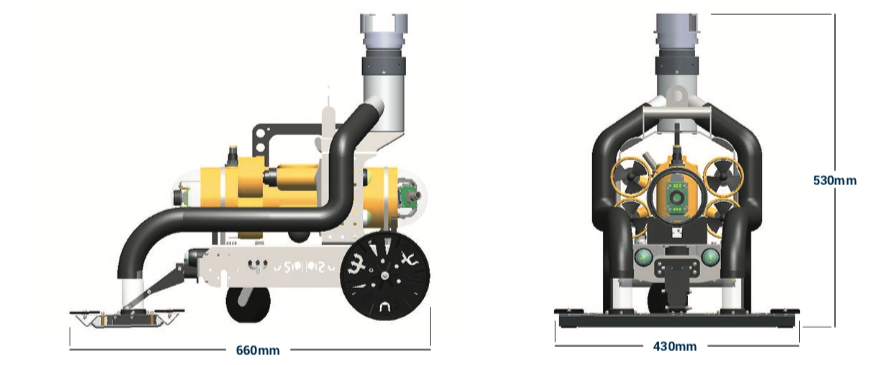

  • Dimensions : 66cm x 43cm x 53cm
  • Weight : 12kg in air / 6kg to neutral in water, adjustable with ballast system
  • Max. speed : Navigation 2 m/s, rolling 0,2 m/s

  Propulsions and power supply

  • Thrusters on Guardian : 4 horizontal and 1 vertical
  • Skid wheels : 2x10W drive wheels (rear), 1 free wheel (front)
  • Power supply : external 220 VAC
  • Ballast : Apparent weight adjustment to optimize rolling ability

  Equipment

  • Suction system : 35m hose and centrifugal gasoline pump 60m3/h
  • Cameras : Front/rear video cameras, 700 TVL, 0.01 lux, front camera on pan & tilt, rear camera on tilt, B/W mode
  • LED lighting : front 4×900 lumens, rear 3×900 lumens
  • Sensors : Compass, pressure, temperature, leak detector (internal moisture level)
  • Umbilical : 50m standard
  • Control : Console integrated in a waterproof case with 8” LCD screen, recorder, 2 joysticks and touchpad
