| Up to 8MP/4K | VISIBLE SENSOR |
| Up to 49X Zoom | VISIBLE LENS |
| 250–2km ZLID | ILLUMINATION |
| Brushless | PAN/TILT MOTOR |
| Rugged | ENCLOSURE |
| Military-Style | CONNECTORS |
| Remote | CONNECTIVITY |

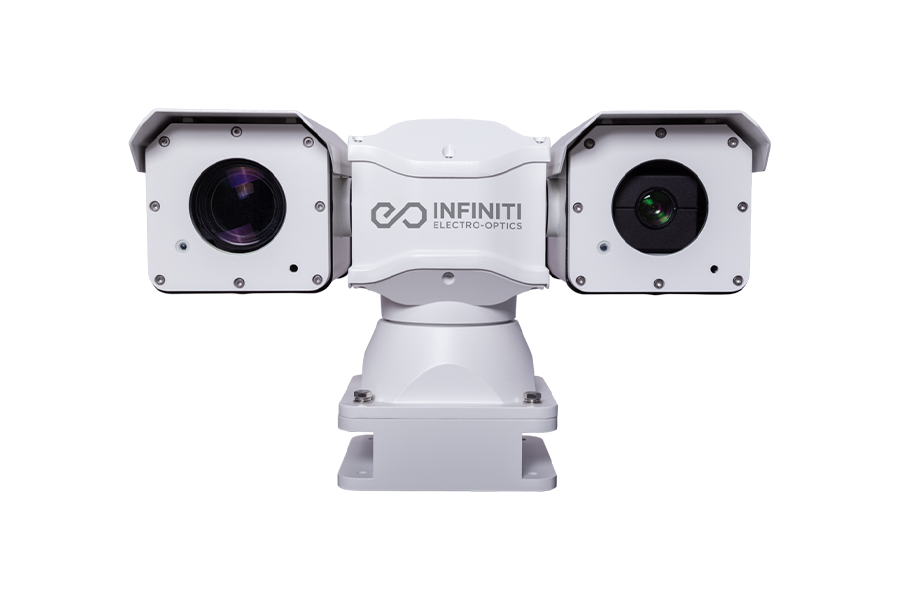

Rugged Long Range Surveillance Camera PTZ Day Night Camera Visible & LWIR/MWIR Zoom Infrared Thermal
The Eclipse boasts numerous zoom lens options up to 272mm, and multiple sensor resolutions available from Full‑HD up to 8MP 4K. Paired with up to 2000m of ZLID illumination or a day/night thermal imaging camera up to 120mm, this camera system offers remarkable nighttime surveillance performance. All of these sensors are integrated into a rugged IP66 weatherproof housing constructed of strengthened aluminum. The Eclipse can withstand some of the harshest climates, making it ideal for perimeter security, homeland defense, and coastal protection.
VISIBLE CAMERA
| 8MP 1/1.8″ Visible/NIR Sensor The 8MP 1/1.8″ sensor provides the best balance between light sensitivity and maximum zoom, with the ability to view both visible and NIR wavelengths making it a true day/night camera. | 49X Long Range Zoom Lens A precision engineered 5.6–272mm telephoto IR-corrected zoom lens offering continuous zoom from a wide 59° angle through to a narrow 1.8° field-of-view. |
| 2MP 1/2.8″ Visible/NIR Sensor The 2MP 1/2.8″ sensor provides the best balance between light sensitivity and maximum zoom, with the ability to view both visible and NIR wavelengths making it a true day/night camera. | 38X Long Range Zoom Lens A precision engineered 7.2–270mm telephoto IR-corrected zoom lens offering continuous zoom from a wide 43° angle through to a narrow 1.2° field-of-view. |
| 4MP 1/1.8″ Visible/NIR Sensor The 4MP 1/1.8″ sensor provides the best balance between light sensitivity and maximum zoom, with the ability to view both visible and NIR wavelengths making it a true day/night camera. | 49X Long Range Zoom Lens A precision engineered 5.6–272mm telephoto IR-corrected zoom lens offering continuous zoom from a wide 62° angle through to a narrow 1.6° field-of-view. |
| 4K UltraHD 1/1.9″ Visible/NIR Sensor The 8MP 1/1.9″ sensor provides the best balance between light sensitivity and maximum zoom, with the ability to view both visible and NIR wavelengths making it a true day/night camera. | 30X Long Range Zoom Lens A precision engineered 6–180mm telephoto IR-corrected zoom lens offering continuous zoom from a wide 63° angle through to a narrow 2.5° field-of-view. |
| 2MP 1/1.9″ Visible/NIR Sensor The 2MP 1/1.9″ sensor provides the best balance between light sensitivity and maximum zoom, with the ability to view both visible and NIR wavelengths making it a true day/night camera. | 49X Long Range Zoom Lens A precision engineered 5.6–272mm telephoto IR-corrected zoom lens offering continuous zoom from a wide 58.4° angle through to a narrow 1.4° field-of-view. |
| 5MP 1/1.8″ Visible/NIR Sensor The 5MP 1/1.8″ sensor provides the best balance between light sensitivity and maximum zoom, with the ability to view both visible and NIR wavelengths making it a true day/night camera. | 30X Long Range Zoom Lens A precision engineered 6–180mm telephoto IR-corrected zoom lens offering continuous zoom from a wide 61° angle through to a narrow 2.3° field-of-view. |
| 2MP 1/1.9″ Visible/NIR Sensor The 2MP 1/1.9″ sensor provides the best balance between light sensitivity and maximum zoom, with the ability to view both visible and NIR wavelengths making it a true day/night camera. | 36X Long Range Zoom Lens A precision engineered 6–218mm telephoto IR-corrected zoom lens offering continuous zoom from a wide 62° angle through to a narrow 1.9° field-of-view. |
| 2MP 1/2.8″ Visible/NIR Sensor The 2MP 1/2.8″ sensor provides the best balance between light sensitivity and maximum zoom, with the ability to view both visible and NIR wavelengths making it a true day/night camera. | 32X Long Range Zoom Lens A precision engineered 4.4–142mm telephoto IR-corrected zoom lens offering continuous zoom from a wide 61.8° angle through to a narrow 2.2° field-of-view. |
ZLID IR ILLUMINATION
| 2km Night Vision Performance Our ZLID™ (Zoom Laser IR Diode) technology synchronizes IR intensity and area illumination with the zoom lens for outstanding active IR performance, eliminating over-exposure, washout, and hot-spots for identification in complete darkness. |
| 1km Night Vision Performance Our ZLID™ (Zoom Laser IR Diode) technology synchronizes IR intensity and area illumination with the zoom lens for outstanding active IR performance, eliminating over-exposure, washout, and hot-spots for identification in complete darkness. |
| 750m Night Vision Performance Our ZLID™ (Zoom Laser IR Diode) technology synchronizes IR intensity and area illumination with the zoom lens for outstanding active IR performance, eliminating over-exposure, washout, and hot-spots for identification performance even in complete darkness. |
| 500m Night Vision Performance Our ZLID™ (Zoom Laser IR Diode) technology synchronizes IR intensity and area illumination with the zoom lens for outstanding active IR performance, eliminating over-exposure, washout, and hot-spots for identification performance even in complete darkness. |
| 350m Night Vision Performance Our ZLID™ (Zoom Laser IR Diode) technology synchronizes IR intensity and area illumination with the zoom lens for outstanding active IR performance, eliminating over-exposure, washout, and hot-spots for identification performance even in complete darkness. |
| No ZLID Illumination If ZLID Illumination is not required, it can be removed to save on cost and/or reduce the size and weight of the camera system. Note that long-range recognition and identification at night will not be possible without ZLID Illumination. |
Thermal Camera
| MWIR, 19-275mm MWIR Cooled Thermal Detector Infiniti’s 15μm 640×480 cooled thermal sensors use integrated cryo-coolers to chill the sensors down to -196°C, increasing the sensitivity of the sensor and allowing smaller and more powerful lenses than uncooled LWIR cameras. | 14X Continuous Zoom Lens We pair the cooled sensor with our 19–275mm ƒ5.5 zoom lens, offering a 28.4°–2.0° HFOV and long-range detection of thermal targets up to 20km away.* |
| LWIR, 26-75mm LWIR VOx Thermal Imager Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors. | Continuous Zoom Lens We pair the uncooled VOx core with our precision-engineered 26–75mm germanium lens, boasting an industry-leading ƒ/1.0 aperture, offering a 16.8°–5.9° HFOV and long-range detection of thermal targets up to 6.8km away.* |
| LWIR, 120 mm LWIR VOx Thermal Imager Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors. | Germanium Lens We pair the uncooled VOx core with our precision-engineered 120mm germanium lens, boasting a wide ƒ/1.4 aperture, for long-range detection of thermal targets up to 11km away.* |
| LWIR, 75mm LWIR VOx Thermal Imager Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors. | Germanium Lens We pair the uncooled VOx core with our precision-engineered 75mm germanium lens, boasting an industry-leading ƒ/1.0 aperture, for long-range detection of thermal targets up to 6.8km away.* |
| LWIR, 55mm LWIR VOx Thermal Imager Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors. | Germanium Lens We pair the uncooled VOx core with our precision-engineered 55mm germanium lens, boasting an industry-leading ƒ/1.0 aperture, for long-range detection of thermal targets up to 6km away.* |
| LWIR, 35 mm LWIR VOx Thermal Imager Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors. | Germanium Lens We pair the uncooled VOx core with our precision-engineered 35mm germanium lens, boasting an industry-leading ƒ/1.0 aperture, for long-range detection of thermal targets up to 3.2km away.* |
| LWIR, 19mm LWIR VOx Thermal Imager Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors. | Germanium Lens We pair the uncooled VOx core with our precision-engineered 19mm germanium lens, boasting an industry-leading ƒ/1.0 aperture, for long-range detection of thermal targets up to 1.7km away.* |
| x No Thermal No Thermal Imaging If thermal imaging is not required, it can be removed to save on cost and/or reduce the size and weight of the camera system. Note that efficient long-range detection is not possible without thermal imaging. |
Heavy-Duty Pan-Tilt Resolver
The heavy-duty PTZ driver is designed for extreme performance in the most demanding applications, with endless 360° panning and Micro-Step technology for precise 0.10° pan and tilt positioning.
Weatherproof Military Connectors
High-quality IP66 weather-sealed connectors maintain a secure connection and allow for quick deployment.
