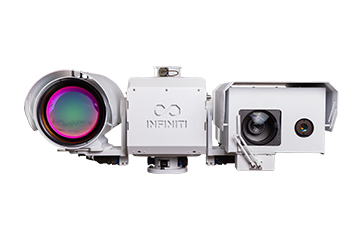

Military-Grade Long‑Range Thermal & Visible PTZ Camera System
The Vega is a fully customizable multi-sensor EO-IR PTZ camera boasting our longest range visible day/night zoom camera and our most advanced cooled or uncooled thermal infrared cameras. It can be configured with our optional ZLID™ long-range NIR illumination, LRF high-precision rangefinder, gyro stabilization and more.
The customizable multi-sensor payload enables the Vega to provide an optimized solution that precisely meets project requirements in the most cost-efficient configuration. The military-grade pan/tilt is designed for weapons systems pointing and accuracy, meeting and exceeding MIL-STD-810F military ratings for shock, vibration, temperature and dust/water ingression.
With multiple options for effective, high-resolution imaging in virtually any environment from thick smoke to complete darkness, this is the ultimate long-range surveillance camera system for achieving 24/7 situational awareness and long-range recognition and identification of targets.
| 2MP, 15.4–2075 (135X) 2MP 1/2.8″ Visible/NIR Sensor The 2MP 1/2.8″ sensor provides the best balance between light sensitivity and maximum zoom. It boasts excellent spectral sensitivity for both visible and NIR wavelengths and features an automatic IR cut filter, making it a true day/night camera with bright color images by day and clear greyscale images at night. 1080p Full HD 135X Long Range Zoom Lens This 15.4–1037.5mm (30.8–2075mm with motorized HD doubler) IR-corrected zoom lens paired with a 1/2.8″ sensor renders a 19.3°–0.15° field-of-view, which is equivalent to a full-frame (35mm) DSLR camera with a 13,500mm lens. Infiniti’s zoom optics are built with the highest quality Japanese fluorite ELD low dispersion glass, and feature integrated rapid auto focus. | 2MP, 30–1000 (33X) 2MP 1/2.8″ Visible/NIR Sensor The 2MP 1/2.8″ sensor provides the best balance between light sensitivity and maximum zoom. It boasts excellent spectral sensitivity for both visible and NIR wavelengths and features an automatic IR cut filter, making it a true day/night camera with bright color images by day and clear greyscale images at night. 1080p Full HD 33X Long Range Zoom Lens This 30–1000mm IR-corrected zoom lens paired with a 1/2.8″ sensor renders a 10°–0.3° field-of-view, which is equivalent to a full-frame (35mm) DSLR camera with a 6,500mm lens. Infiniti’s zoom optics are built with the highest quality Japanese fluorite ELD low dispersion glass, and feature integrated rapid auto focus. |
| 2MP, 8–315 (39X) 2MP 1/2.8″ Visible/NIR Sensor The 2MP 1/2.8″ sensor provides the best balance between light sensitivity and maximum zoom, with the ability to view both visible and NIR wavelengths making it a true day/night camera. 1080p Full HD 39X Long Range Zoom Lens A precision engineered 8–315mm telephoto IR-corrected zoom lens offering continuous zoom from a wide 39° angle through to a narrow 1° field-of-view. | 2MP-SL, 16–2050 (128X) 2MP 1/1.8″ Visible/NIR Starlight Sensor The 2MP 1/1.8″ progressive scan Exmor CMOS sensor is designed for extreme low light performance. 1080p Full HD 128X Long Range Zoom Lens This 30–1000mm IR-corrected zoom lens paired with a 1/1.8″ sensor renders a 8.6°–0.5° horizontal field-of-view. Infiniti’s zoom optics are built with the highest quality Japanese fluorite ELD low dispersion glass, and feature integrated rapid auto focus. |
ZLID ILLUMINATION
| 1km ZLID Illumination 1km Night Vision Performance Our ZLID™ (Zoom Laser IR Diode) technology synchronizes IR intensity and area illumination with the zoom lens for outstanding active IR performance, eliminating over-exposure, washout, and hot-spots for identification in complete darkness. | 2km ZLID Illumination 2km Night Vision Performance Our ZLID™ (Zoom Laser IR Diode) technology synchronizes IR intensity and area illumination with the zoom lens for outstanding active IR performance, eliminating over-exposure, washout, and hot-spots for identification in complete darkness. |
| 3km ZLID Illumination 3km Night Vision Performance Our ZLID™ (Zoom Laser IR Diode) technology synchronizes IR intensity and area illumination with the zoom lens for outstanding active IR performance, eliminating over-exposure, washout, and hot-spots for long-range identification in complete darkness. | 5km ZLID Illumination 5km Night Vision Performance Our ZLID™ (Zoom Laser IR Diode) technology synchronizes IR intensity and area illumination with the zoom lens for outstanding active IR performance, eliminating over-exposure, washout, and hot-spots for long-range identification in complete darkness. |
| × No ZLID No ZLID Illumination If ZLID Illumination is not required, it can be removed to save on cost and/or reduce the size and weight of the camera system. Note that long-range recognition and identification at night will not be possible without ZLID Illumination. |
THERMAL CAMERA
| HD X-Hot, 35–695mm X-Hot MWIR HD Cooled Thermal Imager This high sensitivity cooled thermal 10μm X-Hot sensor has a high definition resolution of 1280×1024 and an ultra-long cooler lifetime of 20,000+ hours. X-Hot Cooled Thermal Sensor 35–695mm Germanium Zoom Lens This precision-engineered ƒ4.0 germanium zoom lens has a 22X optical zoom range from 35mm to 695mm, offering a 20.7° to 1.06° horizontal field of view, which allows for long-range vehicle detection* up to 50km away at 1.4ppm. | HD X-Hot, 65–1000mm X-Hot MWIR HD Cooled Thermal Imager This high sensitivity cooled thermal 10μm X-Hot sensor has a high definition resolution of 1280×1024 and an ultra-long cooler lifetime of 20,000+ hours. X-Hot Cooled Thermal Sensor 65–1000mm Germanium Zoom Lens This precision-engineered ƒ4.0 germanium zoom lens has a 15X optical zoom range from 65mm to 1000mm, offering a 11° to 0.73° horizontal field of view, which allows for long-range vehicle detection* up to 50km away at 2ppm. |
| HD X-Hot, 115–1200mm X-Hot MWIR HD Cooled Thermal Imager This high sensitivity cooled thermal 10μm X-Hot sensor has a high definition resolution of 1280×1024 and an ultra-long cooler lifetime of 20,000+ hours. X-Hot Cooled Thermal Sensor 115–1200mm Germanium Zoom Lens This precision-engineered ƒ4.0 germanium zoom lens has a 10.5X optical zoom range from 115mm to 1200mm, offering a 7.3° to 0.61° horizontal field of view, which allows for long-range vehicle detection* up to 50km away at 2.4ppm. | SD InSb, 18–435mm InSb MWIR Cooled Thermal Imager This high sensitivity cooled thermal 15μm InSb sensor has a resolution of 640×480 and a cooler lifetime of 10,000 hours MTBF. Indium Antimonide Cooled Thermal Sensor 18–435mm Germanium Zoom Lens This precision-engineered ƒ5.5 germanium zoom lens has a 24X optical zoom range from 18mm to 435mm, offering a 30° to 1.3° horizontal field of view, which allows for long-range vehicle detection* up to 26km away at 1.1ppm. |
| SD InSb, 38–875mm InSb MWIR Cooled Thermal Imager This high sensitivity cooled thermal 15μm InSb sensor has a resolution of 640×480 and a cooler lifetime of 10,000 hours MTBF. Indium Antimonide Cooled Thermal Sensor 38–875mm Germanium Zoom Lens This precision-engineered ƒ5.5 germanium zoom lens has a 23X optical zoom range from 38mm to 875mm, offering a 14° to 0.65° horizontal field of view, which allows for long-range vehicle detection* up to 43km away at 1.4ppm. | SD InSb, 46–1075mm InSb MWIR Cooled Thermal Imager This high sensitivity cooled thermal 15μm InSb sensor has a resolution of 640×480 and a cooler lifetime of 10,000 hours MTBF. Indium Antimonide Cooled Thermal Sensor 46–1075mm Germanium Zoom Lens This precision-engineered ƒ5.5 germanium zoom lens has a 23X optical zoom range from 46mm to 1075mm, offering a 11.9° to 0.5° horizontal field of view, which allows for long-range vehicle detection* up to 50km away at 1.4ppm. |
| SD InSb, 70–1400mm InSb MWIR Cooled Thermal Imager This high sensitivity cooled thermal 15μm InSb sensor has a resolution of 640×480 and a cooler lifetime of 10,000 hours MTBF. Indium Antimonide Cooled Thermal Sensor 70–1400mm Germanium Zoom Lens This precision-engineered ƒ5.5 germanium zoom lens has a 20X optical zoom range from 70mm to 1400mm, offering a 7.7° to 0.4° horizontal field of view, which allows for long-range vehicle detection* up to 50km away at 1.9ppm. | SD VOx, 95/280mm LWIR Uncooled VOx Thermal Imager Our GEN II VOx 17μm uncooled sensor is able to detect differences in temperature as small as ±0.05°C, providing great contrast for tracking of targets at long ranges. Vanadium Oxide Uncooled Thermal Sensor Dual-FOV 95/280mm Germanium Lens We pair the uncooled VOx core with a precision-engineered ƒ1.3 germanium lens with a dual-FOV design allowing you to view the scene at either 95mm or 280mm and detect* targets up to 18km away at 0.9ppm. |
| × No Thermal No Thermal Imaging If thermal imaging is not required, it can be removed to save on cost and/or reduce the size and weight of the camera system. Note that efficient long-range detection is not possible without thermal imaging. |
LRF
| 20km LRF, 735μJ Precision Laser Range Finder Accurately measure the distance to a target with our long-range weapons-grade LRF. The LRF-735-50 provides an accuracy of 50–175mm, with ranges up to 20km in good conditions. These LRFs are used in a host of applications such as weapon targeting, advanced tracking, autonomous cars and geo locking surveillance. |
| × No LRF No Laser Rangefinder A laser rangefinder may be unecessary or redundant depending on the application. |
PAN/TILT POSITIONER
| Strain Wave Drive Weapons-Grade Strain Wave Drive A strain wave gear pan/tilt provides unparalleled high torque and precision accuracy to position large electro-optic payloads with micro step movements as precise as 0.00025°, ideal for extreme long-range targeting and tracking. Note that the ideal pan/tilt driver is typically selected based on the camera system payload and installation parameters. | Gyro Stabilized Strain Wave Gyro Stabilized Strain Wave Drive The high torque and precision accuracy of our strain wave gear pan/tilt can be used for 2-axis gyro stabilization when paired with a specially designed and calibrated camera system. In many cases, gyro stabilization is essential for extreme long-range targeting and tracking; see our Gyro Stabilization page to learn why. Note that the ideal pan/tilt driver is typically selected based on the camera system payload and installation parameters. | Worm Drive High Torque Worm Drive A worm gear drive pan/tilt provides high torque to handle large payloads while being inherently self-locking at low-power, using micro-step technology for 0.01° accurate pan and tilt positioning. Note that the ideal pan/tilt driver is typically selected based on the camera system payload and installation parameters. |
CONNECTORS
| Military Connectors Weatherproof Military Connectors High-quality IP66 weather-sealed connectors maintain a secure connection and allow for quick deployment. |
Complete Customizability
The Vega is our most customizable camera system and can be designed to accommodate multiple sensors, special cabling requirements, specific video outputs, weight restrictions, power restrictions, control APIs, custom paint colors, and much more. Let us know your project requirements and we’ll do everything we can to meet them. See the images below for examples of various Vega builds.
Rugged and Robust
The Vega is comprised of military grade, precision engineered components and manufactured using unique processes to offer absolute performance. It uses military-style connectors to supply power, video, and communication over a single cable, increasing reliability and the amount of time required to install the system. The pan/tilt is MIL‑STD‑810F/G tested and is sealed to a minimum of IP66/67 making it water and dust proof. It is able to withstand temperatures from –50°C to +65°C and uses a tough anti-corrosion finish for operation in the most brutal and harsh climatic conditions.
Remote Connectivity and User Friendly
The Vega can be viewed remotely in real-time from anywhere in the world on a PC using Infiniti’s VMS or web client, or on your mobile device with our iPhone or Android apps. It is also controllable by touch screen, mouse, VMS systems, DVR/NVR or PTZ joystick.
Octagon Platform
The Octagon Platform HTTP API is an IP interface for accessing Ascendent and Infiniti Octagon platform devices. This API acts as a unified point-of-contact for client software and services to access the sensors and devices within a system. The goal is to provide consistent, logical, and reliable connectivity to our web server(s) that exposes deep integration capabilities while simplifying interactions with our multi-faceted architecture.
Communication is also available via Serial, using the industry-standard protocol Pelco‑D. This performs regular PTZ operation of the devices with the standard command set. It exposes advanced and peripheral functionality via a list of ‘Special Function Presets’, for any commands not available natively in the Pelco‑D specification.
